VariableConverterIF Class Reference

Variable converter interface class Use to map variables to other variables or to expressions. More...

#include <VariableConverter.hpp>

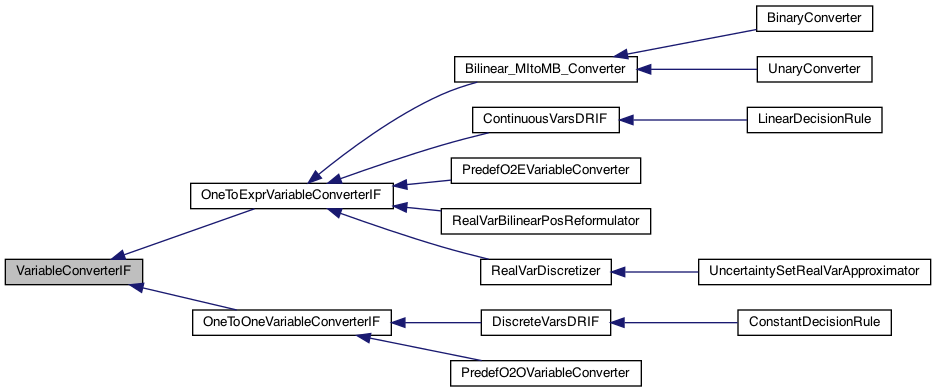

Inheritance diagram for VariableConverterIF:

Public Types
typedef map< string, ROCPPVarIF_Ptr >::const_iterator	const_iterator_inv
	Constant iterator into inverse map. More...

Public Member Functions
	VariableConverterIF ()
	Constructor of VariableConverterIF class. More...
	~VariableConverterIF ()
	Destructor of VariableConverterIF class. More...
const_iterator_inv	findInv (string varName) const
	Return a constant iterator pointing to the pair of the given variable and the old variable associated with it. More...
const_iterator_inv	beginInv () const
	Return a constant iterator pointing to the beginning of the inverse map (m_inverseMap) More...
const_iterator_inv	endInv () const
	Return a constant iterator pointing to the end of the inverse map (m_inverseMap) More...
virtual ROCPPOptModelIF_Ptr	convertVar (ROCPPOptModelIF_Ptr pIn, bool resetAndSave=false)
	Get the objective and constraints in the input model and then convert the variables. More...
virtual void	convertVar (vector< ROCPPConstraintIF_Ptr >::const_iterator first, vector< ROCPPConstraintIF_Ptr >::const_iterator last, ROCPPObjectiveIF_Ptr obj, const dvContainer &origDVContainer, vector< ROCPPConstraintIF_Ptr > &toAdd, ROCPPObjectiveIF_Ptr &toSet, bool resetAndSave=false)=0
	Approximate each variable in the given objective and contraints. More...
virtual void	findVarsToTranslate (vector< ROCPPConstraintIF_Ptr >::const_iterator first, vector< ROCPPConstraintIF_Ptr >::const_iterator last, ROCPPObjectiveIF_Ptr obj, dvContainer &container)=0
	Find the variable in the given ocnstraints and objective to be mapped and store them in the container. More...
virtual void	createInverseMap (const dvContainer &origDVContainer)=0
	Create the map m_inverseMap. More...
virtual double	evaluateVariableValue (string nme, const map< string, double > &binValuesMap) const =0
	Evaluate and return the value of the given variable after converting it. More...
virtual void	printOut (const ROCPPOptModelIF_Ptr pIn, const map< string, double > &variableValue, ROCPPVarIF_Ptr dv)
	Print the solution of the given decision variable. More...

Protected Attributes
map< string, ROCPPVarIF_Ptr >	m_inverseMap
	Map from the new variable name to old variable. More...

Detailed Description

Variable converter interface class Use to map variables to other variables or to expressions.

Member Typedef Documentation

const_iterator_inv

typedef map<string, ROCPPVarIF_Ptr>::const_iterator VariableConverterIF::const_iterator_inv

Constant iterator into inverse map.

Constructor & Destructor Documentation

VariableConverterIF()

VariableConverterIF::VariableConverterIF ( )

inline

Constructor of VariableConverterIF class.

~VariableConverterIF()

VariableConverterIF::~VariableConverterIF ( )

inline

Destructor of VariableConverterIF class.

Member Function Documentation

beginInv()

const_iterator_inv VariableConverterIF::beginInv ( ) const

inline

Return a constant iterator pointing to the beginning of the inverse map (m_inverseMap)

convertVar() [1/2]

ROCPPOptModelIF_Ptr VariableConverterIF::convertVar ( ROCPPOptModelIF_Ptr  pIn, bool  resetAndSave = false  )

virtual

Get the objective and constraints in the input model and then convert the variables.

Parameters

pIn	Model to be approximated
resetAndSave	Whether to set the translation map in class OneToExprVariableConverterIF

Reimplemented in LinearDecisionRule.

convertVar() [2/2]

virtual void VariableConverterIF::convertVar ( vector< ROCPPConstraintIF_Ptr >::const_iterator  first, vector< ROCPPConstraintIF_Ptr >::const_iterator  last, ROCPPObjectiveIF_Ptr  obj, const dvContainer &  origDVContainer, vector< ROCPPConstraintIF_Ptr > &  toAdd, ROCPPObjectiveIF_Ptr &  toSet, bool  resetAndSave = false  )

pure virtual

Approximate each variable in the given objective and contraints.

Parameters

first	Constant iterator pointing to the beginning of the vector of constraints to be mapped
last	Constant iterator pointing to the end of the vector of constraints to be mapped
obj	Objective to be mapped
origDVContainer	Container of decision variables to be approximated
toAdd	Constraints after mapping
toSet	Objective after mapping

createInverseMap()

virtual void VariableConverterIF::createInverseMap ( const dvContainer &  origDVContainer )

pure virtual

Create the map m_inverseMap.

Implemented in OneToExprVariableConverterIF, and OneToOneVariableConverterIF.

endInv()

const_iterator_inv VariableConverterIF::endInv ( ) const

inline

Return a constant iterator pointing to the end of the inverse map (m_inverseMap)

evaluateVariableValue()

virtual double VariableConverterIF::evaluateVariableValue ( string  nme, const map< string, double > &  binValuesMap  ) const

pure virtual

Evaluate and return the value of the given variable after converting it.

Implemented in OneToExprVariableConverterIF, and OneToOneVariableConverterIF.

findInv()

const_iterator_inv VariableConverterIF::findInv ( string  varName ) const

inline

Return a constant iterator pointing to the pair of the given variable and the old variable associated with it.

findVarsToTranslate()

virtual void VariableConverterIF::findVarsToTranslate ( vector< ROCPPConstraintIF_Ptr >::const_iterator  first, vector< ROCPPConstraintIF_Ptr >::const_iterator  last, ROCPPObjectiveIF_Ptr  obj, dvContainer &  container  )

pure virtual

Find the variable in the given ocnstraints and objective to be mapped and store them in the container.

printOut()

virtual void VariableConverterIF::printOut ( const ROCPPOptModelIF_Ptr  pIn, const map< string, double > &  variableValue, ROCPPVarIF_Ptr  dv  )

inlinevirtual

Print the solution of the given decision variable.

Reimplemented in ConstantDecisionRule, and LinearDecisionRule.

Member Data Documentation

m_inverseMap

map<string, ROCPPVarIF_Ptr> VariableConverterIF::m_inverseMap

protected

Map from the new variable name to old variable.
