Partition constructor interface. More...

#include <PWDecisionRule.hpp>

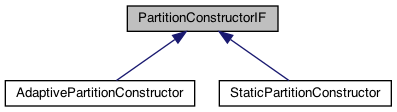

Inheritance diagram for PartitionConstructorIF:

Public Types
typedef map< string, map< string, uint > >::const_iterator	const_iterator
	Constant iterator of the partition map. More...

typedef vector< ROCPPConstraintIF_Ptr >::const_iterator	usconstraints_iterator
	Constant iterator of the vector of uncertainty set constraints. More...

typedef vector< ROCPPConstraintIF_Ptr >::const_iterator	addconstraints_iterator
	Constant iterator of the vector of additional constraints. More...

Public Member Functions
	PartitionConstructorIF (const map< string, uint > &numPartitionsMap)

	~PartitionConstructorIF ()

const_iterator	begin () const
	Return a constant iterator pointing to the beginning of m_partitionsMap. More...

const_iterator	end () const
	Return a constant iterator pointing to the end of m_partitionsMap. More...

usconstraints_iterator	USCbegin (string partition) const
	Return a constant iterator pointing to the beginning of constraints defining the uncertainty set on the given partition. More...

usconstraints_iterator	USCend (string partition) const
	Return a constant iterator pointing to the end of constraints defining the uncertainty set on the given partition. More...

ROCPPUnc_Ptr	getUncOnPartition (string partition, string origUncName) const
	Get the uncertain parameter on the the given subset of the partition for the given original uncertain parameter. More...

addconstraints_iterator	ACbegin () const
	Return a constant iterator pointing to the beginning of m_additionalConstraints. More...

addconstraints_iterator	ACend () const
	Return a constant iterator pointing to the end of m_additionalConstraints. More...

void	getReady (ROCPPOptModelIF_Ptr pIn, ROCPPParConverter_Ptr pPartConverter, ROCPPMItoMB_Ptr pMIMBConverter, map< string, pair< double, double > > &margSupp, const map< string, pair< double, double > > &OAmargSupp, string solver="gurobi")
	Calculate the upper and lower bounds for each uncertainty. More...

void	Reset ()
	Reset all maps in this container. More...

virtual void	constructUncToBreakpointMap (const map< string, pair< double, double > > &margSupp)=0
	Decide on the breakpoint of each uncertainty and store the information in the maps. More...

ROCPPconstdvContainer_Ptr	getBPDVContainer () const

size_t	getNumSubsets () const
	Get the total number of subsets. More...

uint	getNumSubsets (string uncNme) const
	Get the number of subsets for the given uncertainty. More...

uint	getPos (string partition, string uncNme) const

bool	hasPartition (string uncNme) const

ROCPPExpr_Ptr	getBp (pair< string, uint > uncOnPartition) const

map< string, uint >	getNumPartitionsMap () const

Protected Member Functions
void	constructPartitionsMap (ROCPPOptModelIF_Ptr pIn, ROCPPParConverter_Ptr pPartConverter)

Protected Attributes
map< string, uint >	m_numPartitionsMap
	Map from uncertainty to number of breakpoints in this direction. More...

map< string, map< string, uint > >	m_partitionsMap
	Map from partition_name to map from unc name to element of parition associated with this uncertainty. More...

map< string, vector< ROCPPConstraintIF_Ptr > >	m_partitionUSconstraints
	Map from partition name to the vector of constraints specific to this partition. More...

map< pair< string, uint >, ROCPPExpr_Ptr >	m_uncToBreakpointMap
	Map from pair<unc name,breakpoint number> to dv modeling the breakpoint. More...

vector< ROCPPConstraintIF_Ptr >	m_additionalConstraints
	Vector of additional constraints. More...

ROCPPdvContainer_Ptr	m_bpdvs
	Container of breakpoint variables. More...

Detailed Description

Partition constructor interface.

Class for constructing partitions of uncertainty set

Member Typedef Documentation

◆ addconstraints_iterator

typedef vector< ROCPPConstraintIF_Ptr>::const_iterator PartitionConstructorIF::addconstraints_iterator

Constant iterator of the vector of additional constraints.

◆ const_iterator

typedef map<string, map<string,uint> >::const_iterator PartitionConstructorIF::const_iterator

Constant iterator of the partition map.

◆ usconstraints_iterator

typedef vector<ROCPPConstraintIF_Ptr>::const_iterator PartitionConstructorIF::usconstraints_iterator

Constant iterator of the vector of uncertainty set constraints.

Constructor & Destructor Documentation

◆ PartitionConstructorIF()

PartitionConstructorIF::PartitionConstructorIF ( const map< string, uint > & numPartitionsMap )

Parameters

numPartitionsMap Map from uncertainty name to number of break points in this direction

◆ ~PartitionConstructorIF()

PartitionConstructorIF::~PartitionConstructorIF ( )

inline

Member Function Documentation

◆ ACbegin()

addconstraints_iterator PartitionConstructorIF::ACbegin ( ) const

inline

Return a constant iterator pointing to the beginning of m_additionalConstraints.

◆ ACend()

addconstraints_iterator PartitionConstructorIF::ACend ( ) const

inline

Return a constant iterator pointing to the end of m_additionalConstraints.

◆ begin()

const_iterator PartitionConstructorIF::begin ( ) const

inline

Return a constant iterator pointing to the beginning of m_partitionsMap.

◆ constructPartitionsMap()

void PartitionConstructorIF::constructPartitionsMap	(	ROCPPOptModelIF_Ptr	pIn,
		ROCPPParConverter_Ptr	pPartConverter
	)

protected

◆ constructUncToBreakpointMap()

virtual void PartitionConstructorIF::constructUncToBreakpointMap ( const map< string, pair< double, double > > & margSupp )

pure virtual

Decide on the breakpoint of each uncertainty and store the information in the maps.

Implemented in AdaptivePartitionConstructor, and StaticPartitionConstructor.

◆ end()

const_iterator PartitionConstructorIF::end ( ) const

inline

Return a constant iterator pointing to the end of m_partitionsMap.

◆ getBp()

ROCPPExpr_Ptr PartitionConstructorIF::getBp ( pair< string, uint > uncOnPartition ) const

◆ getBPDVContainer()

ROCPPconstdvContainer_Ptr PartitionConstructorIF::getBPDVContainer ( ) const

inline

◆ getNumPartitionsMap()

map<string,uint> PartitionConstructorIF::getNumPartitionsMap ( ) const

inline

◆ getNumSubsets() [1/2]

size_t PartitionConstructorIF::getNumSubsets ( ) const

inline

Get the total number of subsets.

◆ getNumSubsets() [2/2]

uint PartitionConstructorIF::getNumSubsets ( string uncNme ) const

Get the number of subsets for the given uncertainty.

◆ getPos()

uint PartitionConstructorIF::getPos	(	string	partition,
		string	uncNme
	)		const

◆ getReady()

void PartitionConstructorIF::getReady	(	ROCPPOptModelIF_Ptr	pIn,
		ROCPPParConverter_Ptr	pPartConverter,
		ROCPPMItoMB_Ptr	pMIMBConverter,
		map< string, pair< double, double > > &	margSupp,
		const map< string, pair< double, double > > &	OAmargSupp,
		string	solver = `"gurobi"`
	)

Calculate the upper and lower bounds for each uncertainty.

◆ getUncOnPartition()

ROCPPUnc_Ptr PartitionConstructorIF::getUncOnPartition	(	string	partition,
		string	origUncName
	)		const

Get the uncertain parameter on the the given subset of the partition for the given original uncertain parameter.

◆ hasPartition()

bool PartitionConstructorIF::hasPartition ( string uncNme ) const

◆ Reset()

void PartitionConstructorIF::Reset ( )

inline

Reset all maps in this container.

◆ USCbegin()

PartitionConstructorIF::usconstraints_iterator PartitionConstructorIF::USCbegin ( string partition ) const

Return a constant iterator pointing to the beginning of constraints defining the uncertainty set on the given partition.

◆ USCend()

PartitionConstructorIF::usconstraints_iterator PartitionConstructorIF::USCend ( string partition ) const

Return a constant iterator pointing to the end of constraints defining the uncertainty set on the given partition.

Member Data Documentation

◆ m_additionalConstraints

vector<ROCPPConstraintIF_Ptr> PartitionConstructorIF::m_additionalConstraints

protected

Vector of additional constraints.

◆ m_bpdvs

ROCPPdvContainer_Ptr PartitionConstructorIF::m_bpdvs

protected

Container of breakpoint variables.

◆ m_numPartitionsMap

map<string,uint> PartitionConstructorIF::m_numPartitionsMap

protected

Map from uncertainty to number of breakpoints in this direction.

◆ m_partitionsMap

map<string, map<string,uint> > PartitionConstructorIF::m_partitionsMap

protected

Map from partition_name to map from unc name to element of parition associated with this uncertainty.

◆ m_partitionUSconstraints

map< string, vector< ROCPPConstraintIF_Ptr> > PartitionConstructorIF::m_partitionUSconstraints

protected

Map from partition name to the vector of constraints specific to this partition.

◆ m_uncToBreakpointMap

map< pair<string,uint>, ROCPPExpr_Ptr> PartitionConstructorIF::m_uncToBreakpointMap

protected

Map from pair<unc name,breakpoint number> to dv modeling the breakpoint.
